Aeroboom Single Acting Lock Nut Cylinder ALL Series

50000 INR/Number

Get a Price/Quote

Product Details:

Color Dark Gray
Product Type Single Acting Lock Nut Cylinder
Usage Industrial
Material Stainless Steel
Structure Other
Power Hydraulic
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Aeroboom Single Acting Lock Nut Cylinder ALL Series Price And Quantity

Price 50000 INR/Number
Minimum Order Quantity 1 Number

Aeroboom Single Acting Lock Nut Cylinder ALL Series Product Specifications

Material Stainless Steel
Product Type Single Acting Lock Nut Cylinder
Usage Industrial
Power Hydraulic
Color Dark Gray
Structure Other

Aeroboom Single Acting Lock Nut Cylinder ALL Series Trade Information

Supply Ability 100 Number Per Week
Delivery Time 4-8 Week
Main Domestic Market All India

Product Description

Features

Single-acting, load return.
Safety Lock Nut for mechanical load holding.
Special synthetic coating for improved corrosion resistance and lower friction for smoother operation.
Overflow port functions as a stroke limiter.
Inter changeable, hardened grooved saddles are standard.
ACR-400 coupler and dust cap included on all models.

Specification

Model Number	Cylinder Capacity ton	Stroke mm	Cylinder Effective area mm	Oil Capacity cm2	Collapsed Height A mm	Extended Height A mm	Outside Dia D mm	Cylinder Bore dia E mm	Plunger Dia ThreadF mm	Base to Adv port H mm	Lock nut Height S mm	Weight kg	Saddle Dia J1 mm	Saddle Height K1 mm	Saddle Model Number
ALL-502	50	50	70,9	355	164	214	125	95,0	Tr95 x4	30	36	15	71	24	AT-100
ALL-504		100	70,9	709	214	314	125	95,0	Tr95x4	30	36	20	71	24	AT-100
ALL-506		150	70,9	1064	264	414	125	95,0	Tr95x4	30	36	25	71	24	AT-100
ALL-508		200	70,9	1418	314	514	125	95,0	Tr95x4	30	36	30	71	24	AT-100
ALL-5010		250	70,9	1773	364	614	125	95,0	Tr95x4	30	36	35	71	24	AT-100
ALL-5012		300	70,9	2127	414	714	125	95,0	Tr95x4	30	36	40	71	24	AT-100
ALL-1002	100	50	132,7	664	187	237	165	130,0	Tr 130 x6	30	44	30	71	24	AT-100
ALL-1004		100	132,7	1327	237	337	165	130,0	Tr 130x6	30	44	39	71	24	AT-100
ALL-1006		150	132,7	1991	287	437	165	130,0	Tr130x6	30	44	48	71	24	AT-100
ALL-1008		200	132,7	2654	337	537	165	130,0	Tr130x6	30	44	56	71	24	AT-100
ALL-10010		250	132,7	3318	387	637	165	130,0	Tr 130 x6	30	44	64	71	24	AT-100
ALL-10012		300	132,7	3981	437	737	165	130,0	Tr130x6	30	44	73	71	24	AT-100
ALL-1502	150	50	198,6	993	209	259	205	159,0	Tr 159x6	39	44	53	130	20	AT-200
ALL-1504		100	198,6	1986	259	359	205	159,0	Tr 159 x6	39	44	66	130	20	AT-200
ALL-1506		150	198,6	2979	309	459	205	159,0	Tr 159 x6	39	44	78	130	20	AT-200
ALL-1508		200	198,6	3972	359	559	205	159,0	Tr 159 x6	39	44	92	130	20	AT-200
ALL-15010		250	198,6	4965	409	659	205	159,0	Tr 159x6	39	44	104	130	20	AT-200
ALL-15012		300	198,6	5958	459	759	205	159,0	Tr 159x6	39	44	117	130	20	AT-200
ALL-2002	200	50	265,6	1330	243	293	235	184,0	Tr184x6	50	50	83	130	20	AT-200
ALL-2006		150	265,6	3989	343	493	235	184,0	Tr 184 x6	50	50	117	130	20	AT-200
ALL-20012		300	265,6	7995	493	793	235	184,0	Tr184x6	50	50	170	130	20	AT-200
ALL-2502	250	50	366,1	1832	249	299	275	216,0	Tr216x6	50	56	116	150	21	AT-250
ALL-2506		150	366,1	5496	349	499	275	216,0	Tr 216x6	50	56	162	150	21	AT-250
ALL-25012		300	366,1	10995	499	799	275	216,0	Tr 216 x6	50	56	234	150	21	AT-250
ALL-3002		50	456,2	2281	295	345	310	241,0	Tr 241 x6	59	60	173	195	75	AT-300
ALL-3006	300	150	456,2	6843	395	545	310	241,0	Tr 241 x6	59	60	233	195	75	AT-300
ALL-30012	300	300	456,2	13740	545	845	310	241,0	Tr 241 x6	59	60	323	195	75	AT-300
ALL-4002	400	50	559,9	2800	335	385	350	267,0	Tr 266 x6	70	70	250	225	85	AT-400
ALL-4006		150	559,9	8399	435	585	350	267,0	Tr 266 x6	70	70	327	225	85	AT-400
ALL-40012		300	559,9	16800	585	885	350	267,0	Tr 266 x6	70	70	444	225	85	AT-400
ALL-5002	500	50	731,1	3653	375	425	400	305,0	Tr 305 x6	80	80	367	250	91	AT-500
ALL-5006		150	731,1	10959	475	625	400	305,0	Tr 305 x 6	80	80	466	250	91	AT-500
ALL-50012		300	731,1	21930	625	925	400	305,0	Tr 305 x6	80	80	617	250	91	AT-500
ALL-6002	600	50	854,8	4277	395	445	430	330,0	Tr 330 x6	85	85	446	275	96	AT-600
ALL-6006		150	854,8	12830	495	645	430	330,0	Tr 330 x6	85	85	562	275	96	AT-600
ALL-60012		300	854,8	25650	645	945	430	330,0	Tr 330 x6	85	85	737	275	96	AT-600
ALL-8002	800	50	1176,9	5882	455	505	505	387,0	Tr 387 x6	100	100	709	320	123	AT-800
ALL-8006		150	1176,9	17645	555	705	505	387,0	Tr 387 x6	100	100	870	320	123	AT-800
ALL-80012		300	1176,9	35370	705	1005	505	387,0	Tr 387 x6	100	100	1110	320	123	AT-800
ALL-10002	1000	50	1466,9	7329	495	545	560	432,0	Tr 432 x6	110	110	949	360	136	AT-1000
ALL-10006		150	1466,9	21986	595	745	560	432,0	Tr 432 x6	110	110	1141	360	136	AT-1000
ALL-100012		300	1466,9	43980	745	1045	560	432,0	Tr 432 x6	110	110	1430	360	136	AT-1000

Other Products in 'Hydraulic Cylinder' category

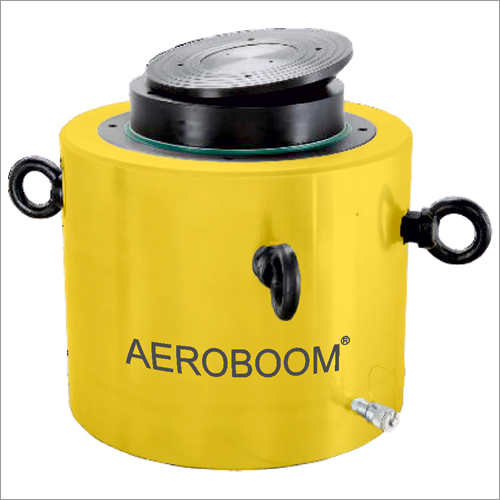

Aeroboom Single Acting Pile Testing Hydraulic Cylinder / Hydraulic Jack Price : 55000 INR/Number Minimum Order Quantity : 1 Color : Yellow Usage : Industrial Material : Stainless Steel Product Type : PTJ Series Single Acting Pile Testing Hydraulic Cylinder Structure : Other, PTJ Series Single Acting Pile Testing Hydraulic Cylinder Power : Hydraulic Watt (w)
