ABRD Series Double Acting Precision Production Cylinder

55000 INR/Number

Get a Price/Quote

Product Details:

Usage Industrial
Color Black,Yellow
Product Type ABRD Series Double Acting Precision Production Cylinder
Material Aluminum
Structure ABRD Series Double Acting Precision Production Cylinder
Power Hydraulic Watt (w)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

ABRD Series Double Acting Precision Production Cylinder Price And Quantity

Price 55000 INR/Number
Minimum Order Quantity 1 Number

ABRD Series Double Acting Precision Production Cylinder Product Specifications

Structure ABRD Series Double Acting Precision Production Cylinder
Usage Industrial
Product Type ABRD Series Double Acting Precision Production Cylinder
Color Black,Yellow
Material Aluminum
Power Hydraulic Watt (w)

ABRD Series Double Acting Precision Production Cylinder Trade Information

Supply Ability 100 Number Per Week
Delivery Time 4-8 Week
Main Domestic Market All India

Product Description

FEATURES

Designed for long life, the best choice for production applications.
Unique mounting configurations simplify fixturing.
Baked enamel finish for increased corrosion resistance.
Double-acting operation develops force in both directions, providing maximum versatility.
Plunger wiper reduces contamination, extending cylinder life.
Imperial models (RD-series) available on request.

Specification

Model Number	Cylinder Capacity	Stroke	Max Cylinder (kN)		Cylinder Effective Area (cm2)		Oily Capacity (cm3)		Coll. Height A	Ext Height B	Body Length C	Outside Dia D	Cylinder Bore Diaqa E	Plunger dia F
	ton	mm	Advance	Retract	Advance	Retract	Advance	Retract	mm	mm	mm	mm	mm	mm
ABRD-41		28	39	16	5,1	2,2	14	6	186	214	162	90	25,4	19,0
ABRD-43		79	35	16	5,1	2,2	40	17	237	316	213	50	25,4	19,0
ABRD-46		155	35	16	5,1	2,2	79	34	313	468	289	50	25,4	19,0
ABRD-91	8	28	80	44	11,4	6,3	32	18	223	251	198	65	38,1	25,4
ABRD-93		79	80	44	11,4	6,3	90	50	274	353	249	65	38,1	25,4
ABRD-96		155	80	44	11,4	6,3	177	98	350	505	325	65	38,1	25,4
ABRD-910		257	80	44	11,4	6,3	293	162	452	709	427	65	38,1	25,4
ABRD 166	15	159	142	77	11,4	10,6	323	169	389	548	359	80	50,8	35,0
ABRD-1610	15	260	142	77	20,3	10,6	528	276	491	751	461	80	50,8	35,0
ABRD-256	23	159	222	98	20,3	13,7	504	218	424	583	397	92	63,5	47,8
ABRD-2510	23	260	222	98	31,7	13,7	824	356	526	786	499	92	63,5	47,8

Model Number	Top to Retract Port H	Bottom to Advance Port I	Plunger Protrusion K	Clevis eye Mounting Dimension			Neck Length N	Plunger Thread Length P	Plunger External Thread O	Cylinder Mounting Dimension mm				Weight
	Top to Retract Port H	Bottom to Advance Port I	Plunger Protrusion K	L	L1	M	Neck Length N	Plunger Thread Length P		Collar Thread	Collar Thread Length	Internal Base Thread	Int. Base Thread Length	Weight
	mm	mm	mm	mm	mm	mm	mm	mm		W	X	Z	Z1	kg
ABRD-43	47	47	24	258	286	41	29	22	M16 x 1,5	M42 x 1,5	11	M30 x 1,5	9	2,0
ABRD-43	47	47	24	308	387	41	29	22	M16 x 1,5	M42 x 1,5	11	M30 x 1,5	9	2,6
ABRD-46	47	47	24	385	540	41	29	22	M16 x 1,5	M42 x 1,5	11	M30 x 1,5	9	3,6
ABRD-91	57	57	25	295	323	38	38	22	M22 x 1,5	M56 x 2	14	M42 x 1,5	14	3,0
ABRD-93	57	57	25	346	425	38	38	22	M22 x 1,5	M56 x 2	14	M42 x 1,5	14	4,2
ABRD-96	57	57	25	422	577	38	38	22	M22 x 1,5	M56 x 2	14	M42 x 1,5	14	5,6
ABRD-910	57	57	25	524	781	38	38	22	M22 x 1,5	M56 x 2	14	M42 x 1,5	14	7,3
ABRD 166	73	73	30	492	651	52	54	28	M30 x 1,5	M70 x2	22	M56 x 2	24	10,2
ABRD-1610	73	73	30	593	853	52	54	28	M30 x 1,5	M70 x2	22	M56 x 2	24	14,5
ABRD-256	89	89	27	524	683	53	70	25	M42 x 1,5	M85 x 2	29	M70 x2	26	16,0
ABRD-2510	89	89	27	626	886	53	70	25	M42 x 1,5	M85 x2	29	M70 x2	26	20,3

Other Products in 'Hydraulic Cylinder' category

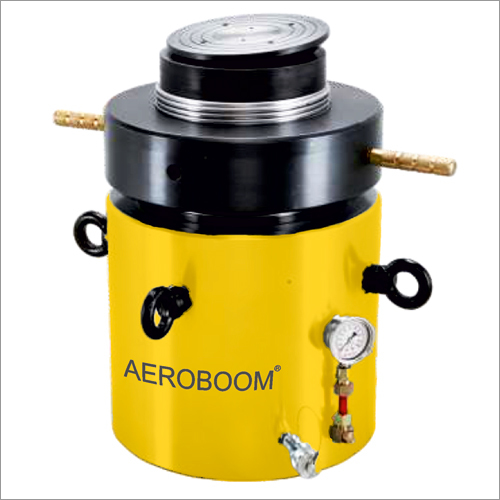

Aeroboom Single Acting Pile Testing Hydraulic Cylinder / Hydraulic Jack Price : 65000 INR/Number Minimum Order Quantity : 1 Structure : Other, PTJS Series Single Acting Pile Testing Hydraulic Cylinder Usage : Industrial Product Type : PTJS Series Single Acting Pile Testing Hydraulic Cylinder Color : Yellow & Black Material : Stainless Steel Power : Hydraulic Watt (w)

Send Inquiry

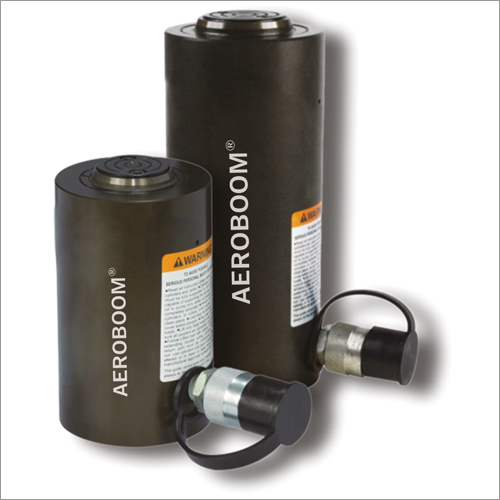

Arac Series Single Acting Aluminum Cylinder Price : 35000 INR/Number Minimum Order Quantity : 1 Structure : Arac Series Single Acting Aluminum Cylinder, Other Usage : Industrial Product Type : Arac Series Single Acting Aluminum Cylinder Color : Gray Material : Stainless Steel Power : Hydraulic Watt (w)

Send Inquiry

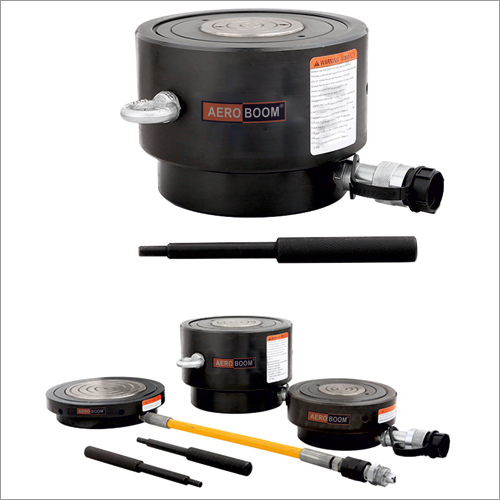

Aeroboom Single Acting Pancake Cylinders ARCL AHRCL And ARDL Series Price : 65000 INR/Number Minimum Order Quantity : 1 Structure : Other Usage : Industrial Product Type : ARCL AHRCL And ARDL Series Single Acting Pancake Cylinders Color : Black Material : Stainless Steel Power : Hydraulic

Send Inquiry

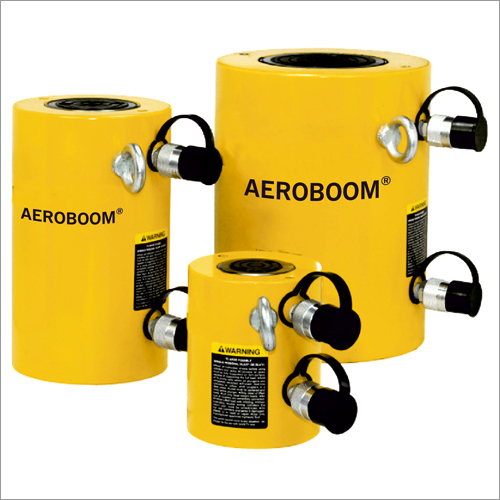

Alrc Series Double Acting High Tonnage Cylinder Price : 100000 INR/Number Minimum Order Quantity : 1 Structure : Other, Alrc Series Double Acting High Tonnage Cylinder Usage : Industrial Product Type : Alrc Series Double Acting High Tonnage Cylinder Color : Yellow Material : Aluminum Power : Hydraulic Watt (w)
