AMLT Series Intelligent Hydraulic Mobile Lifting Trolley With 300 Ton Capacity

750000 INR/Number

Get a Price/Quote

Product Details:

Product Type AMLT Series Intelligent Hydraulic Mobile Lifting Trolley With 300 Ton Capacity
Color Black
Usage Industrial
Body Material Steel
Type AMLT Series Intelligent Hydraulic Mobile Lifting Trolley With 300 Ton Capacity
Force Power kilogram-force (kgf)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

AMLT Series Intelligent Hydraulic Mobile Lifting Trolley With 300 Ton Capacity Price And Quantity

Price 750000 INR/Number
Minimum Order Quantity 1 Number

AMLT Series Intelligent Hydraulic Mobile Lifting Trolley With 300 Ton Capacity Product Specifications

Product Type AMLT Series Intelligent Hydraulic Mobile Lifting Trolley With 300 Ton Capacity
Type AMLT Series Intelligent Hydraulic Mobile Lifting Trolley With 300 Ton Capacity
Force Power kilogram-force (kgf)
Body Material Steel
Usage Industrial
Color Black

AMLT Series Intelligent Hydraulic Mobile Lifting Trolley With 300 Ton Capacity Trade Information

Supply Ability 100 Number Per Week
Delivery Time 4-8 Week
Main Domestic Market All India

Product Description

Capacity: 300 Ton
Working pressure: 700 Bar
Stroke: 250 mm

Used in oil refining heat exchanger core installed to the shell (core), use 300T hydraulic car to lift and shift the core, hydraulic car main top is double acting mechanical self locking top, first lift core to a certain height, core and shell should be guaranteed in same centre, locking the main top. Translates the core, starts the car to move the function (forward and backward both are viable), slowly will the core body enter the shell, until the customer further installs.

Based on field bus technology PLC distributed control system of the overall program, divided into hydraulic bearing control unit, driving the control unit in two parts, integrate electrical, hydraulic and mechanical into the automated hydraulic equipment, through computer control of the load-bearing system and drive the system to work, with simultaneous lifting, self-walking, walking and other functions simultaneously

Specification

Model	AMLT-300
Double acting lock nut hydraulic cylinder	Capacity: 300T Working pressure: 700 Bar Stroke: 250 mm
Electric Hydraulic Pump	Motor Power: 1.1 KW( frequency conversion) 380V 50Hz (Can be customized) Working Pressure: 700 Bar Flow: 1L/min Oil Tank Capacity: 25L
Walking motor power	4 KW Reduction Box（manual disconnecting device）
Walking speed	0-1.3 m/min（frequency control）
Wheel diameter	760mm
Wheel Track	960mm
Track gauge	1200mm
Screw rod support	Load 100T/piece
Dimensions	2470mmx1442mmx940mm

Other Products in 'Hydraulic Lifting Systems' category

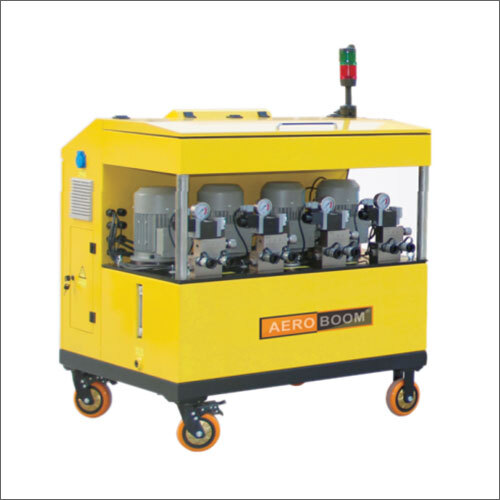

AISL Series Intelligent Synchronous LIfting Hydraulic System Price : 1000000 INR/Number Minimum Order Quantity : 1 Usage : Industrial Color : Yellow & Black Type : Other, AISL Series Intelligent Synchronous LIfting Hydraulic System Product Type : AISL Series Intelligent Synchronous LIfting Hydraulic System Body Material : Steel Force : Power kilogramforce (kgf)
