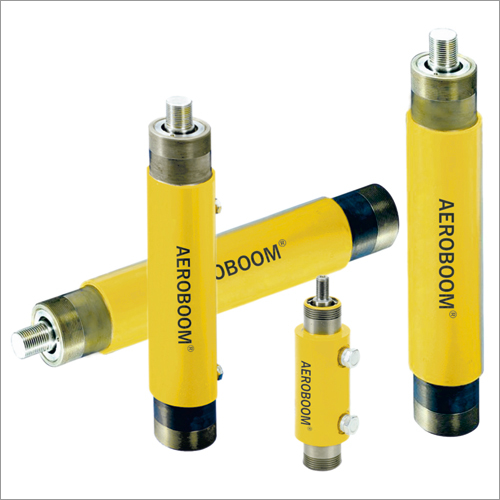

Aeroboom Double Acting Hollow Plunger Cylinder ARRH Series
Product Details:
- Usage Industrial
- Product Type ARRH Series Double Acting Hollow Plunger Cylinder
- Color Yellow & Black
- Material Stainless Steel
- Structure ARRH Series Double Acting Hollow Plunger Cylinder
- Click to View more
Aeroboom Double Acting Hollow Plunger Cylinder ARRH Series Price And Quantity
- 1 Number
- 125000 INR/Number
Aeroboom Double Acting Hollow Plunger Cylinder ARRH Series Product Specifications
- Industrial
- Stainless Steel
- ARRH Series Double Acting Hollow Plunger Cylinder
- Yellow & Black
- ARRH Series Double Acting Hollow Plunger Cylinder
Aeroboom Double Acting Hollow Plunger Cylinder ARRH Series Trade Information
- 100 Number Per Week
- Week
- All India
Product Description
- Hollow piston design allows for both pulling and pushing forces.
- High strength alloy steel construction for increased durability.
- Double acting operation for fast, controlled piston retraction.
- Built-in safety valve prevents accidental over- pressurization.
- Collar, piston threads, and base mounting holes enables easy fixturing.
- Rugged, ACR-400 Female couplers with dust covers provided.
- Complies with ASME B30.1 standards.
|
Model Number |
Cylinder Capacity |
Stroke |
Max. Cylinder Capacity (Kn) |
Cylinder Effective Area (cm2) |
Oil Capacity cm3 |
|||
|
ton |
mm |
Advance |
Retract |
Advance |
Retract |
Advance |
Retract |
|
|
ARRH-307 |
30 |
178 |
326 |
213 |
46,6 |
30,4 |
829 |
541 |
|
ARRH-3010 |
258 |
326 |
213 |
46,6 |
30,4 |
1202 |
784 |
|
|
ARRH-603 |
60 |
89 |
576 |
380 |
82,3 |
54,2 |
733 |
482 |
|
ARRH-606 |
166 |
576 |
380 |
82,3 |
54,2 |
1366 |
900 |
|
|
ARRH-6010 |
257 |
576 |
380 |
82,3 |
54,2 |
2115 |
1393 |
|
|
ARRH-1001 |
100 |
38 |
931 |
612 |
133,0 |
87,4 |
505 |
333 |
|
ARRH-1003 |
76 |
931 |
612 |
133,0 |
87,4 |
1011 |
666 |
|
|
ARRH-1006 |
153 |
931 |
612 |
133,0 |
87,4 |
2035 |
1337 |
|
|
ARRH-10010 |
257 |
931 |
612 |
133,0 |
87,4 |
3420 |
2246 |
|
|
ARRH-1508 |
150 |
203 |
1429 |
718 |
204,1 |
102,6 |
4144 |
2083 |
|
Optional Heat Treated Hollow Saddles |
|||||
|
Saddle Type |
Cylinder Model Number |
Saddle Model Number |
Saddle Dimension (mm) |
||
|
|
A |
B |
C |
||
|
Threaded Hollow |
ARRH-307,3010 |
HP-3015 |
63 |
1 1/4-7 |
9 |
|
ARRH-603,606,6010 |
HP-5016 |
91 |
1 5/8-5 1/2 |
12 |
|
|
ARRH-1001,1003, |
HP-10016 |
126 |
2 1/2 -8 |
13 |
|
|
Model Number |
Bolt Circle U |
Thread V |
Thread Depth Z |
|
ARRH-307 |
92,2 |
3/8 -16 |
15,7 |
|
ARRH-3010 |
92,2 |
3/8 -16 |
15,7 |
|
ARRH-603 |
130,0 |
1/2 -13 |
14,0 |
|
ARRH-606 |
130,0 |
1/2 -13 |
14,0 |
|
ARRH-6010 |
130,0 |
1/2 -13 |
14,0 |
|
ARRH-1001 |
177,8 |
5/8 -11 |
19,0 |
|
ARRH-1003 |
177,8 |
5/8 -11 |
19,0 |
|
ARRH-1006 |
177,8 |
5/8 -11 |
19,0 |
|
ARRH-10010 |
177,8 |
5/8 -11 |
19,0 |
|
ARRH-1508 |
- |
- |
- |
|
Coll. Height A |
Ext. Height B |
Out Dia D |
Cyl Bore Dia E |
Plgr Dia F |
Cyl. Base Adv. Port H |
Cyl Top to Return Port |
Saddle Dia |
Saddle protr fr.Plgr K |
Thread |
Plunger Thread Length P |
Collar Thread |
Collar Thread LengthX |
Center Hole Dia Y |
Weight |
Model Number |
|||
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
mm |
|
mm |
mm |
Kg |
ARRH-307 |
|||
|
330 |
508 |
114 |
88,9 |
63,5 |
25 |
60 |
63 |
9 |
1 13/16 -16 |
22 |
4 1/2-12 |
42 |
33,3 |
21 |
ARRH-3010 |
|||
|
431 |
689 |
114 |
88,9 |
63,5 |
25 |
60 |
63 |
9 |
1 13/16 -16 |
22 |
4 1/2-12 |
42 |
33,3 |
27 |
ARRH-603 |
|||
|
247 |
336 |
159 |
123,9 |
91,9 |
31 |
66 |
91 |
12 |
2 3/4 -16 |
19 |
6 1/4 -12 |
48 |
53,8 |
28 |
ARRH-606 |
|||
|
323 |
489 |
159 |
123,9 |
91,9 |
31 |
66 |
91 |
12 |
2 3/4 -16 |
19 |
6 1/4 -12 |
48 |
53,8 |
35 |
ARRH-6010 |
|||
|
438 |
695 |
159 |
123,9 |
91,9 |
31 |
66 |
91 |
12 |
2 3/4 -16 |
19 |
- |
48 |
53,8 |
45 |
ARRH-1001 |
|||
|
165 |
203 |
212 |
165,1 |
127,0 |
38 |
44 |
126 |
12 |
4-16 |
25 |
8 3/8-12 |
60 |
79,2 |
33 |
ARRH-1003 |
|||
|
254 |
330 |
212 |
165,1 |
127,0 |
38 |
85 |
126 |
12 |
4-16 |
25 |
8 3/8-12 |
60 |
79,2 |
61 |
ARRH-1006 |
|||
|
342 |
495 |
212 |
165,1 |
127,0 |
38 |
85 |
126 |
12 |
4-16 |
25 |
8 3/8-12 |
60 |
79,2 |
79 |
ARRH-10010 |
|||
|
460 |
717 |
212 |
165,1 |
127,0 |
38 |
85 |
126 |
12 |
4-16 |
25 |
8 3/8-12 |
60 |
79,2 |
111 |
ARRH-1508 |
|||
|
349 |
552 |
247 |
190,5 |
152,4 |
38 |
60 |
127 |
4 |
4 1/2-12 |
25 |
|
- |
79,2 |
21 |
|
|||
